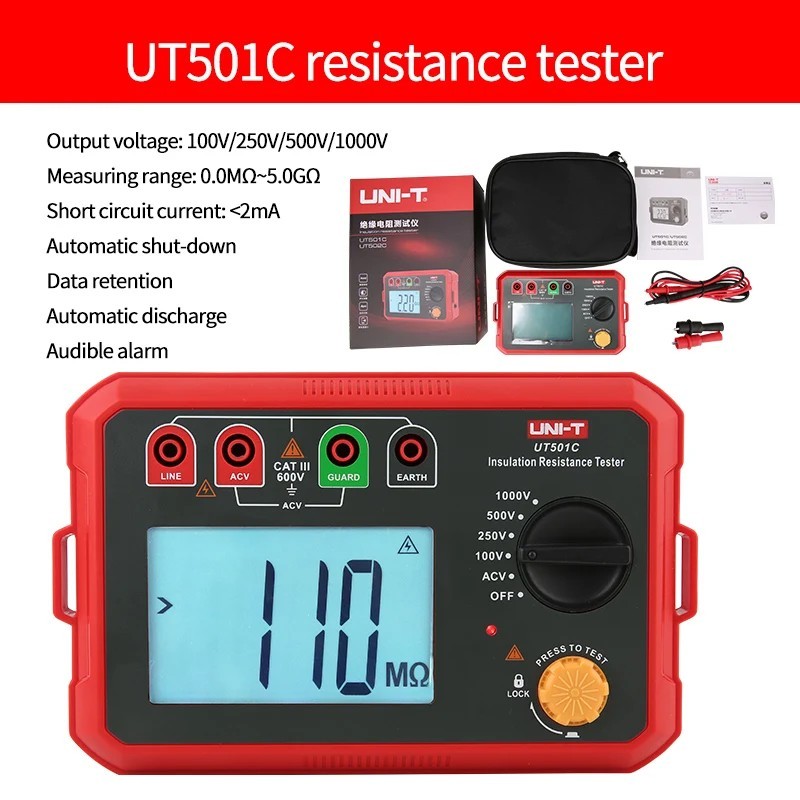

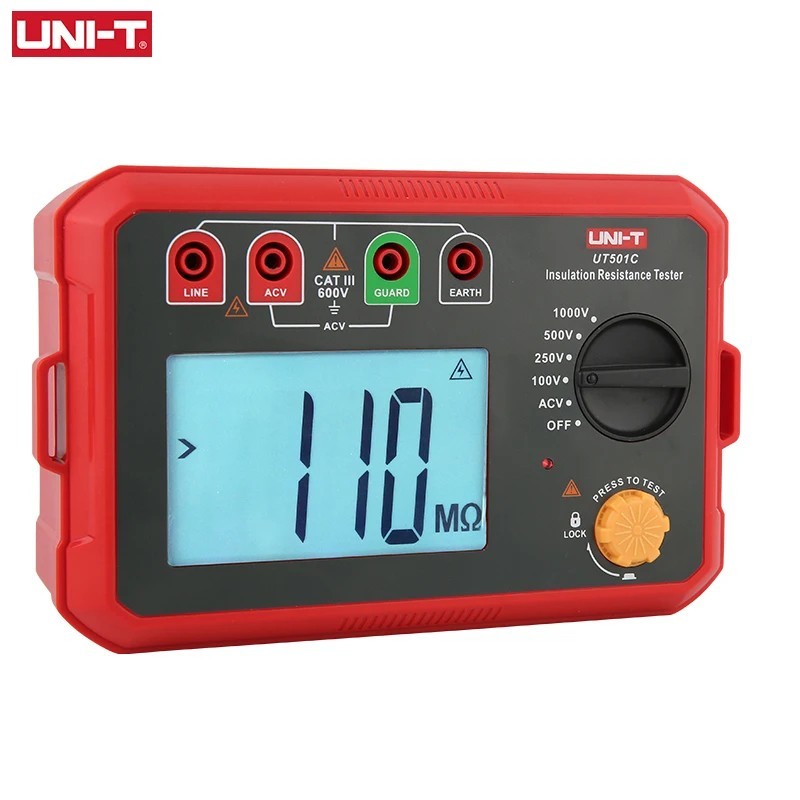

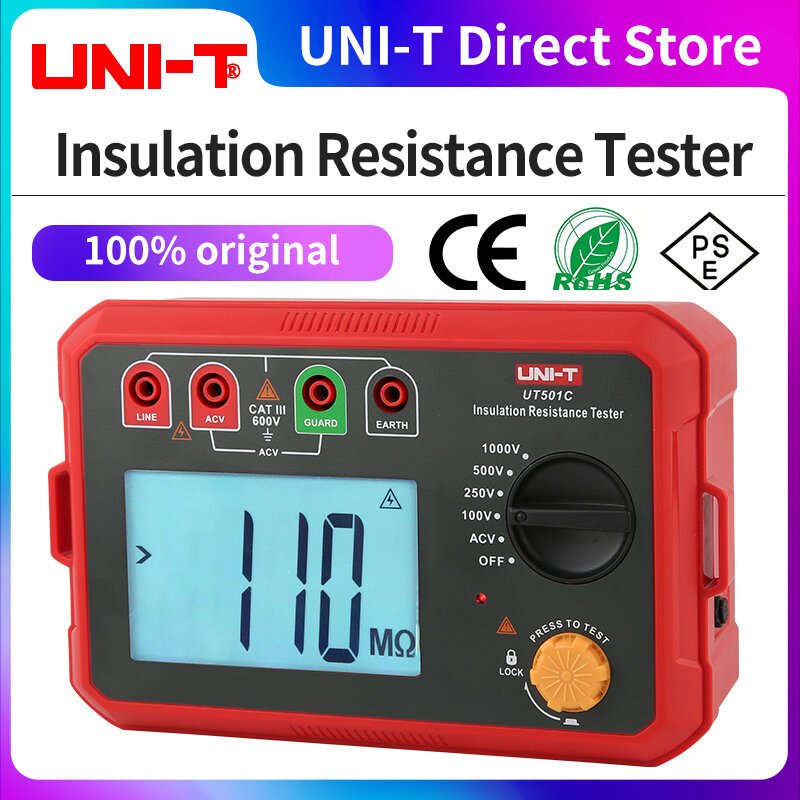

UNI-T UT501C Insulation Resistance Tester

Specifications of UT501C Insulation Resistance Tester


Specifications Output Voltage Measurement Range UT501C
Insulation Resistance Measurement 100V 0.00MΩ～100MΩ √
250V 0.00MΩ～500MΩ √
500V 0.00MΩ～2.00GΩ √
1000V 0.00MΩ～5.00GΩ √
2500V 0.00MΩ～20.0GΩ
Accuracy 0.00MΩ～99.9MΩ: ±(3%+5)
100MΩ～5.00GΩ: ±(5%+5) √
0.00MΩ～99.9MΩ: ±(3%+5)
100MΩ～9.99GΩ: ±(5%+5)
10.0GΩ～20.0GΩ: ±(10%+5)
Voltage Measurement Range AC: 30V～750V (50Hz/60Hz)， ±(2%+3)
Short-Circuit Current <2mA
Powered by Adaptor (optional,without charging function)
6×1.5V AA alkaline batteries
Auto Power Off √
Self-Lock Function √
Low Battery Indication √
Data Hold √
Auto Discharge √
Audible and Visual Alarm √
Overrange Indication √
Backlight function √
Altitude ≤2000 m
Operating temperature and Humidity 0℃~35℃,<75% RH
Storage temperature and Humidity -20℃~60℃,<80% RH
Rating CAT III 600V
General Characteristics
Product Color Red + grey
Product Weight
(Include batteries) 0.6kg
Product Size 183.5mmx115mmx74mm
Accessories User manual *1 pcs；test lead *1 set；Alligator *1 set,Strap *1 pcs, 1.5V AA batteries *6pcs.
Standard Package Gift box+ cloth bag
Package Quantity
Package Size
