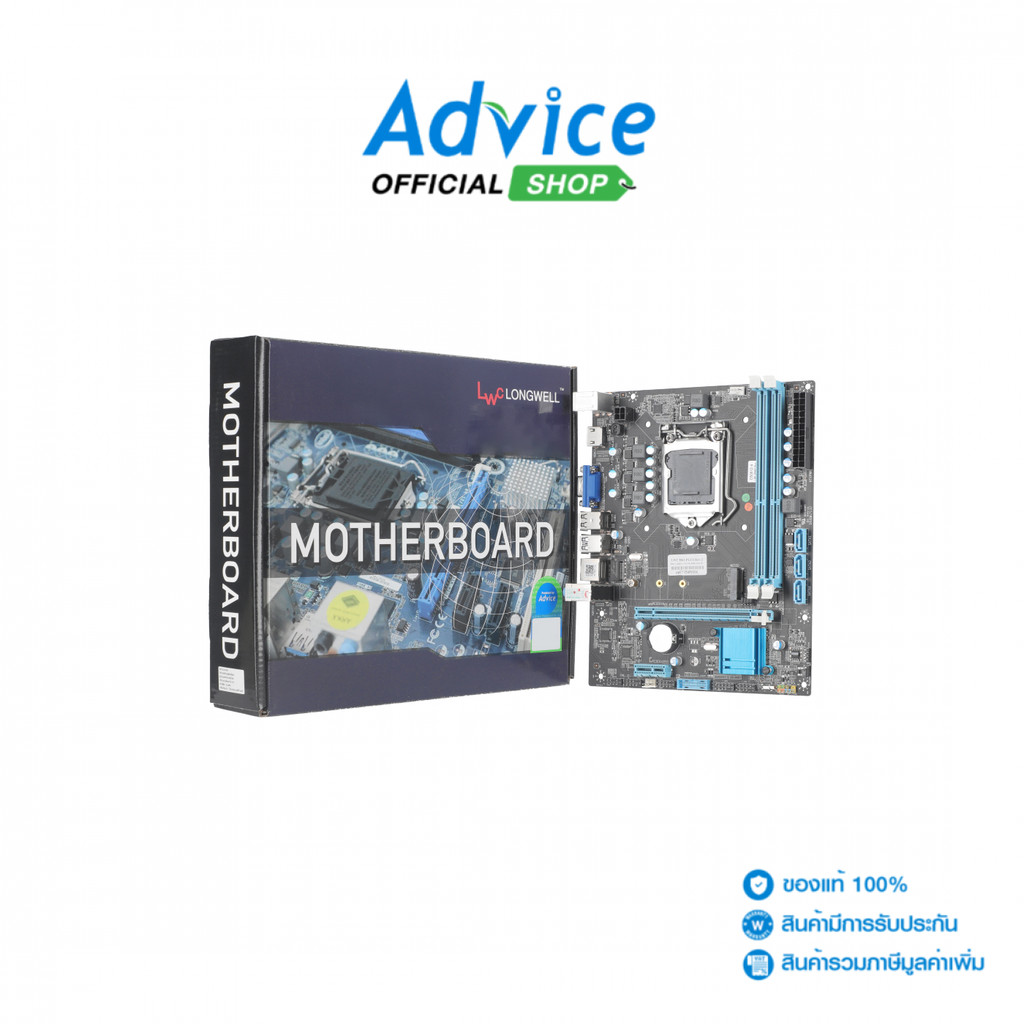

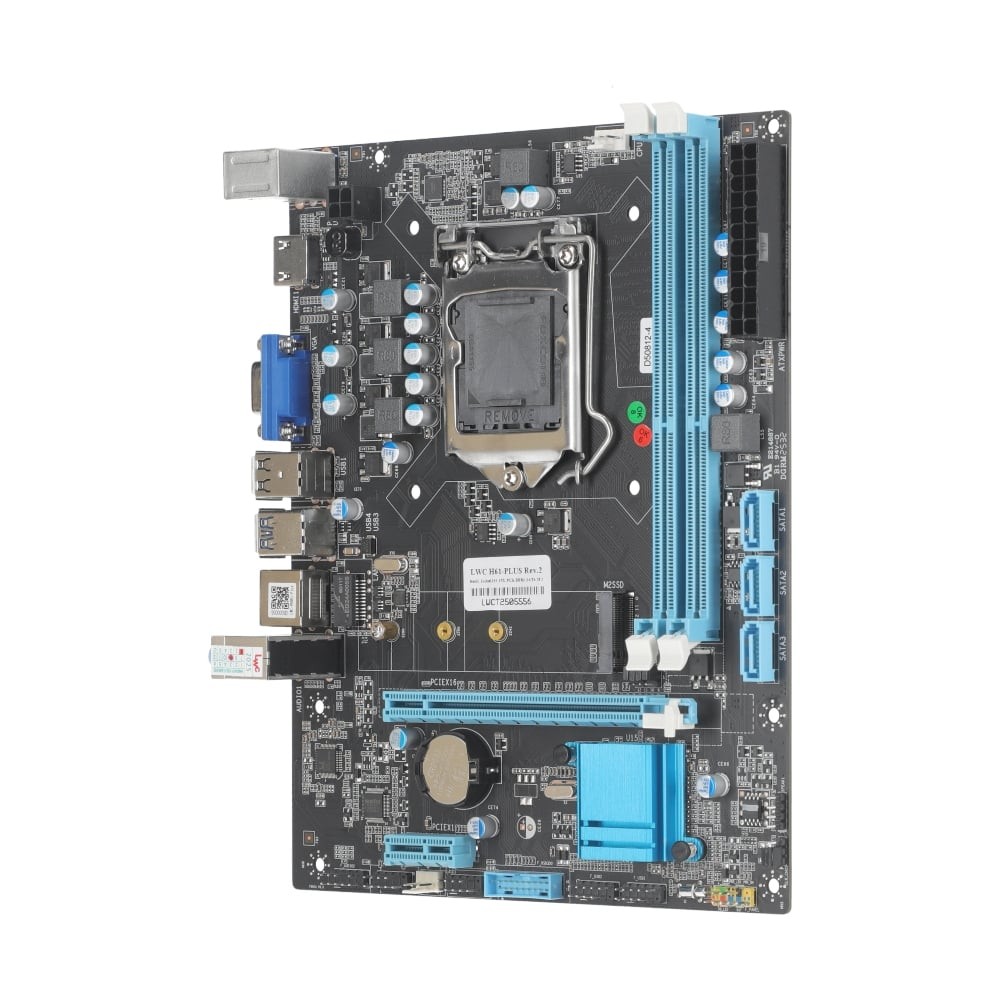

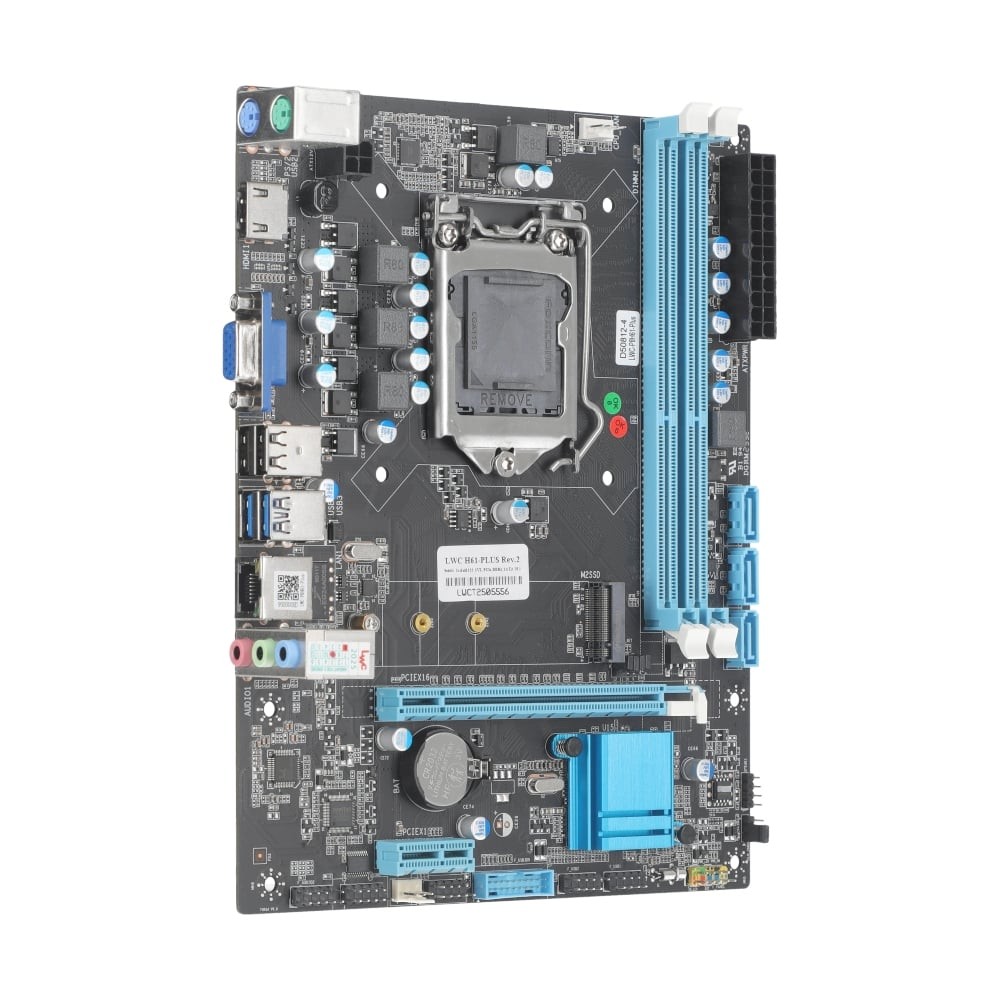

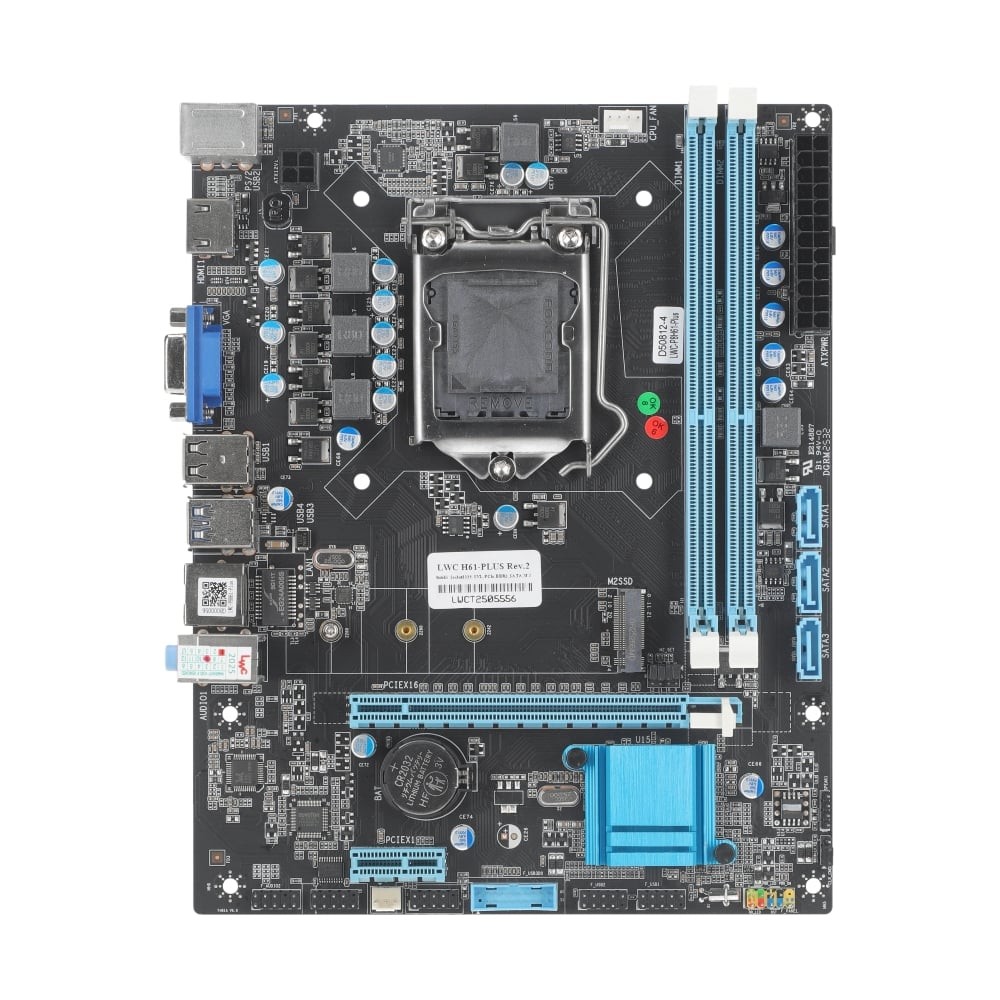

LONGWELL MAINBOARD (1155) H61-PLUS DDR3 REV.2 - A0173668

Brand : LONGWELL
Model : H61-PLUS DDR3 REV.2
CPU Support : Intel 2nd/3rd Generation Core i3/i5/i7/Pentium/Celeron Processors
CPU Brand : Intel
Socket : 1155
Chipset : Intel H61
Memory Support : Dual Channel DDR3 Memory Technology
2 x DDR3 DIMM Slots
Support DDR3 1600/1333/1066 MHz Non-ECC, Un-Buffered
Max.capacity up to 16GB Memory
Maximum Memory Bus : 1600
Graphics : 1 x HDMI Port
1 x VGA (D-Sub) Port
Multi Graphic Support : N/A
Audio : Reatek ALC 662 Channel High Definition Audio CODEC
Expansion Slots : 1 x PCI Express 2.0 x16 (x16 mode)
1 x PCI Express 2.0 x1
Maximum PCIe Version : PCIe 2.0
Storage : 3 x SATA II 3.0Gb/s Connector
1 x M.2
M.2 Storage Type Support : NVMe
M.2 Slot : 1
USB : 2 x USB 2.0 Ports
2 x USB 3.0 Ports
2 x F USB 2.0 Connector (Internal)
1 x F USB 3.0 Connectors (Internal)
Internal I/O Connectors : 1 x 24-pin EATX Power Connector
1 x 4-pin ATX 12V Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
2 x F USB 2.0 Connector
1 x F USB 3.0 Connectors
1 x CMOS
1 x Front Panel Audio Connector (AAFP)
1 x Speaker Connector
1 x System Panel Connector

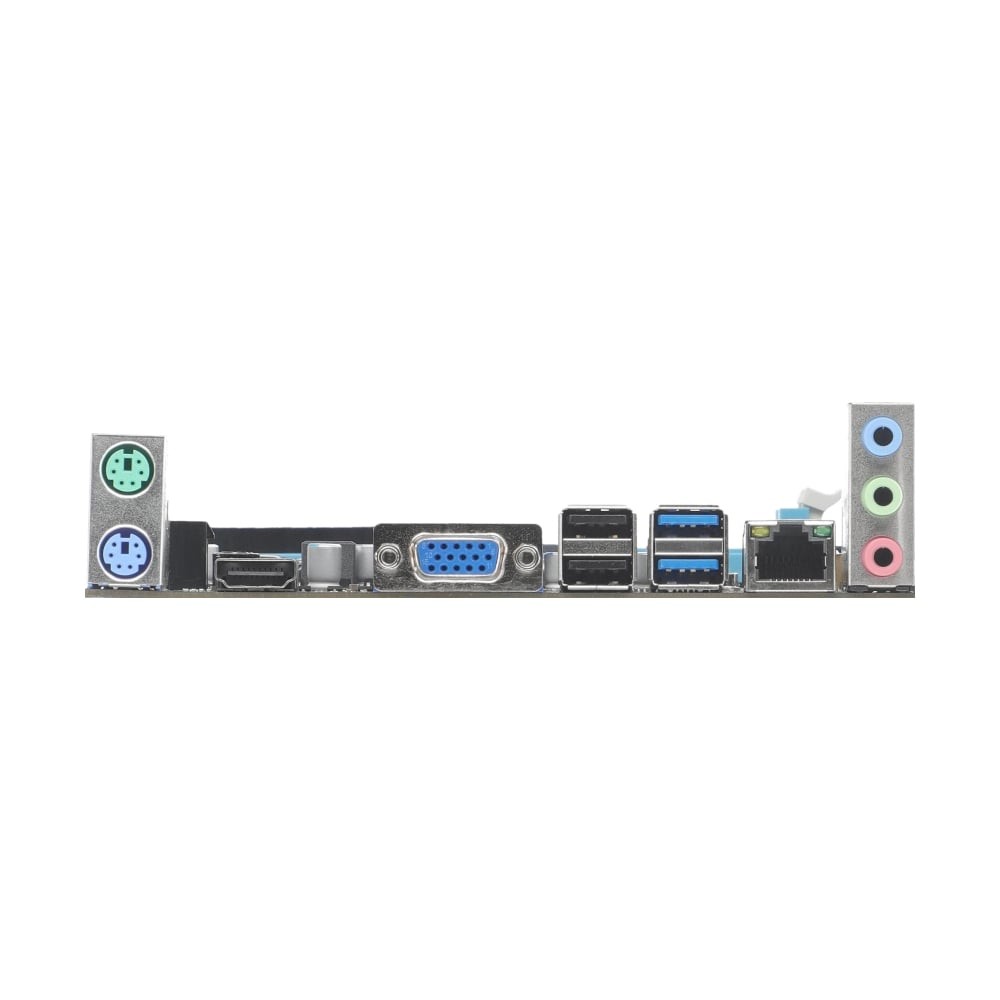

Back Panel Connectors : 1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x VGA (D-Sub) Port
2 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x RJ-45 LAN Port
3 x Audio Jacks: Line in / Speaker / Microphone
LAN : 10/100/1000 Mb/s auto negotiation Half/Full duplex capabity
Realtek@ RTL8111E
Wireless Data Network : None
Form Factor : Micro ATX
H/W Monitoring : N/A
BIOS : N/A
Special Features : N/A
Software Features : N/A
Operating System Support : Support for Windows XP/7/8/10 32bit &
Package Contents : N/A
Dimension (W x D x H) : 0.00 x 0.00 x 0.00 cm
Net Weight : 0.00
Package Dimension (W x D x H) : 0.00 x 0.00 x 0.00 cm
Gross Weight : 0.00
Volume : 0.00
ประกัน : 1 ปี
