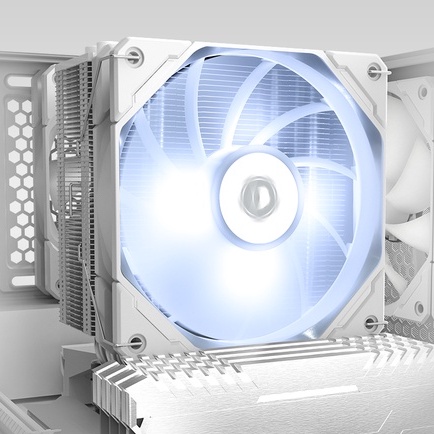

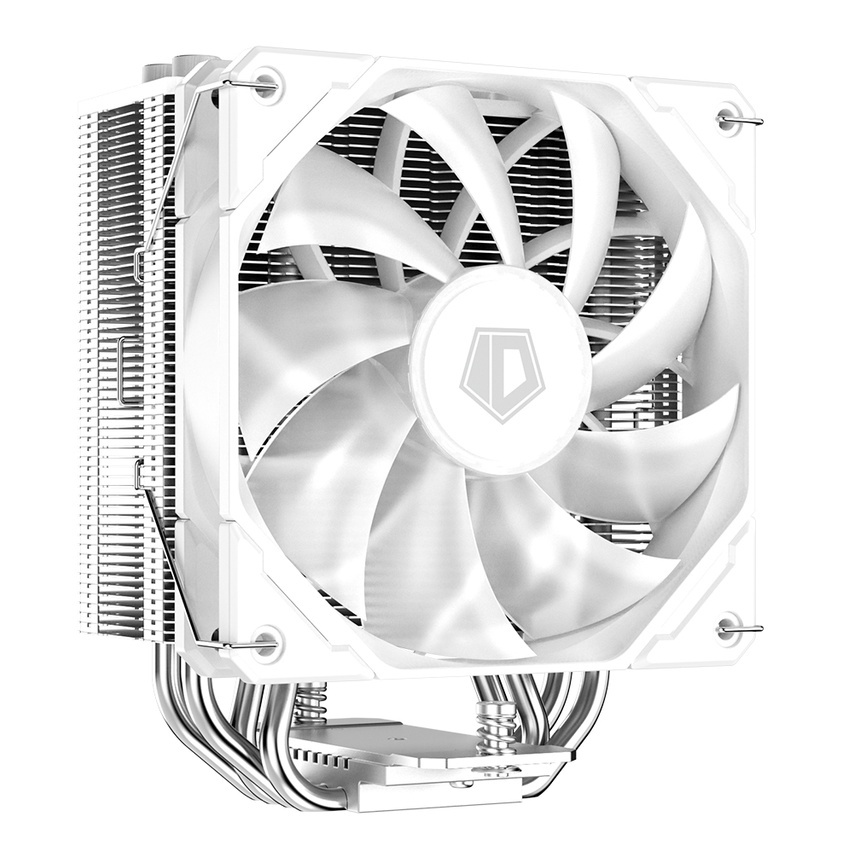

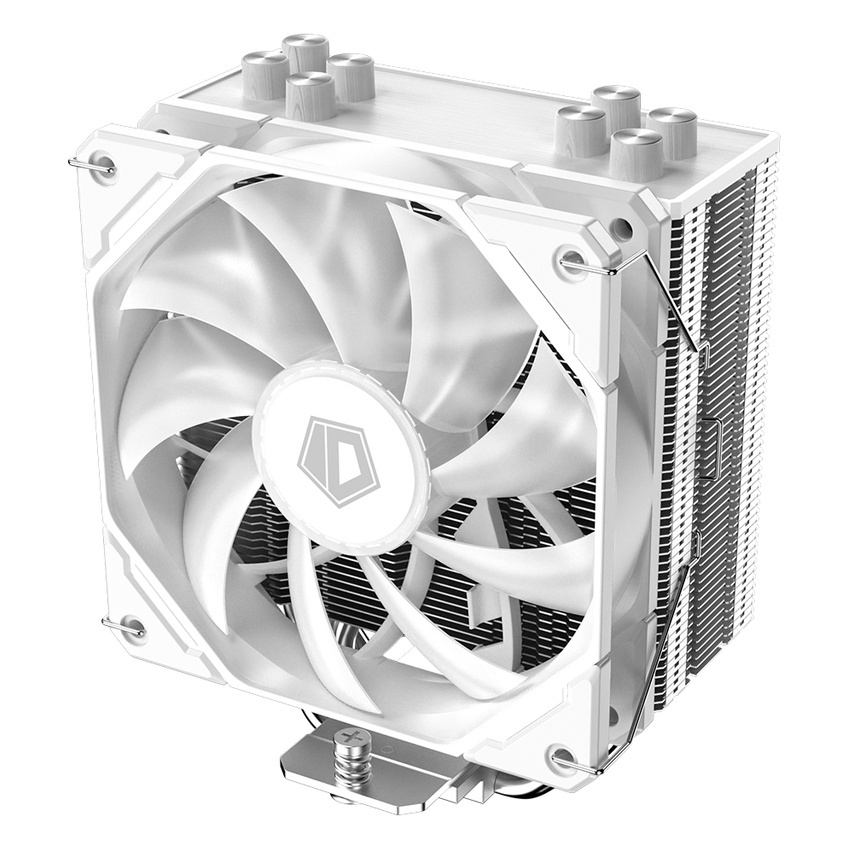

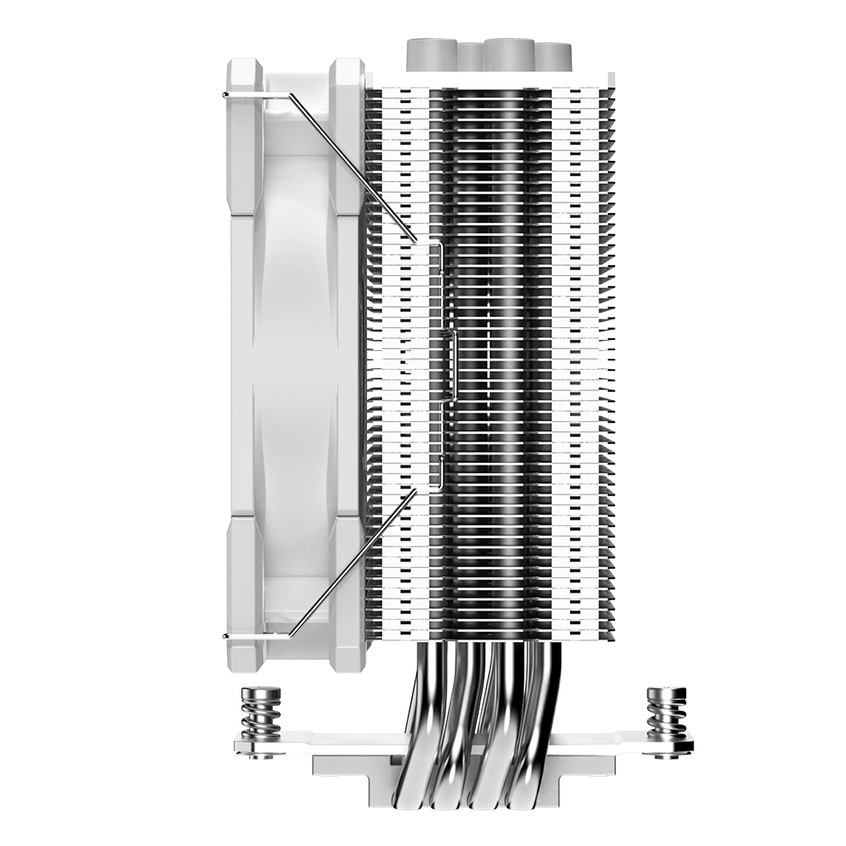

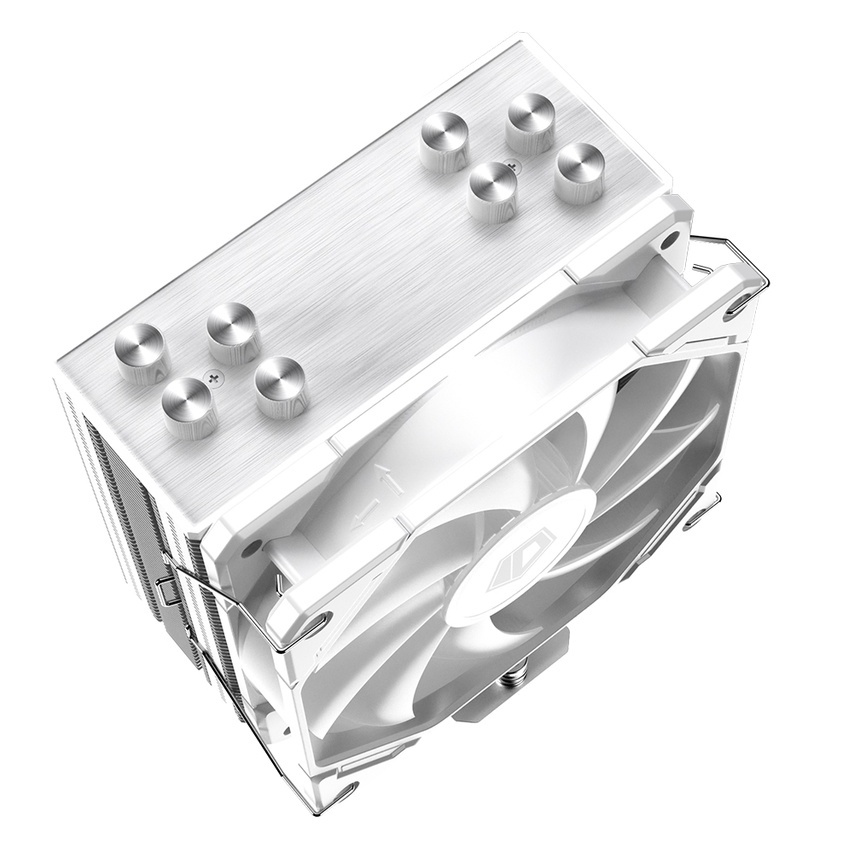

ID-COOLING SE-224-XTS BLACK / White / ARGB CPU COOLER AMD/Intel

ID-COOLING SE-224-XTS BLACK / White / ARGB CPU COOLER AMD/Intel

Specifications:

Brand: ID-Cooling

Model: SE-224-XTS Series

Compatibility:

Intel: LGA1700 / 1200 / 1151 / 1150 / 1155 / 1156

AMD: AM5 / AM4

TDP: 220W

Overall Dimension: 120×75×151mm (L×W×H)

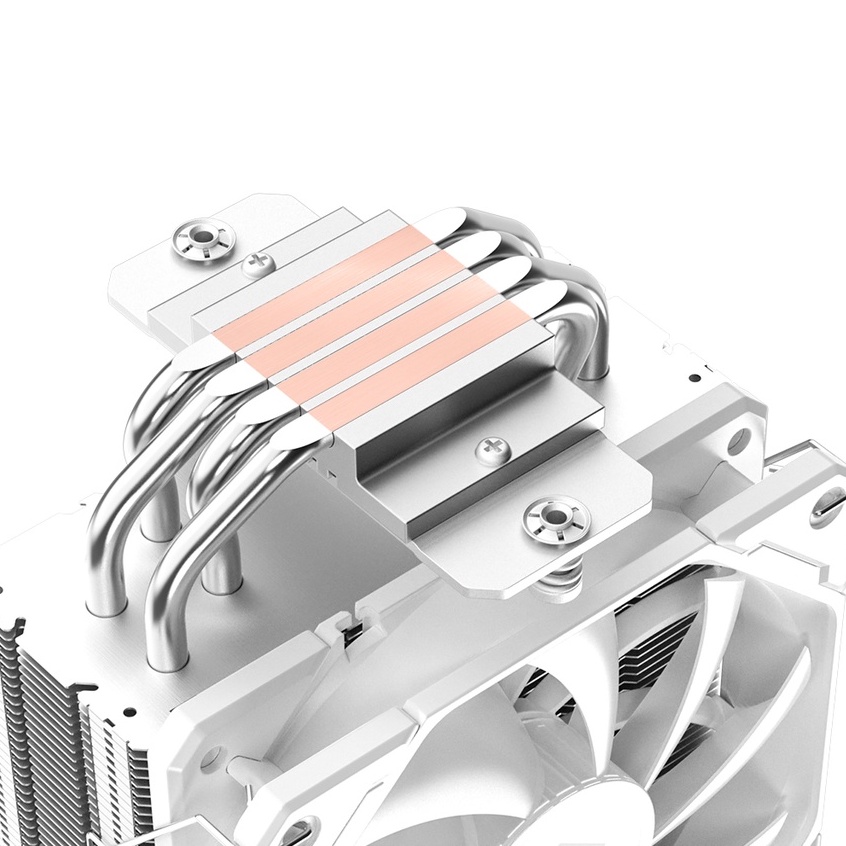

Heatsink Material: 4×Ф6mm Heatpipe (Direct Touch) +Aluminum Fin

Weight: 650g (heatsink+fan)

Fan Dimension: 120×120×25mm

Fan Speed: 600 ~1500 RPM ±10%

Max. Air Flow: 70CFM

Max. Static Pressure: 2.15mmH2O

Noise: 28.9dB(A) Max.

Rated Voltage: 12VDC (4pin PWM) / 5V (3pin ARGB)

Operating Voltage: 10.8～13.2VDC

Started Voltage: 7VDC

Rated Current: 0.15A

Power Input: 1.8W

Bearing Type: Hydraulic Bearing

Connector: 4Pin PWM / 3pin ARGB


วิธีติดตั้ง

Intel
https://youtu.be/54wxKwikuUc

AMD AM4
https://youtu.be/tEN0ElrGkag

AMD AM5
https://youtu.be/XCXjgmVo1ao
