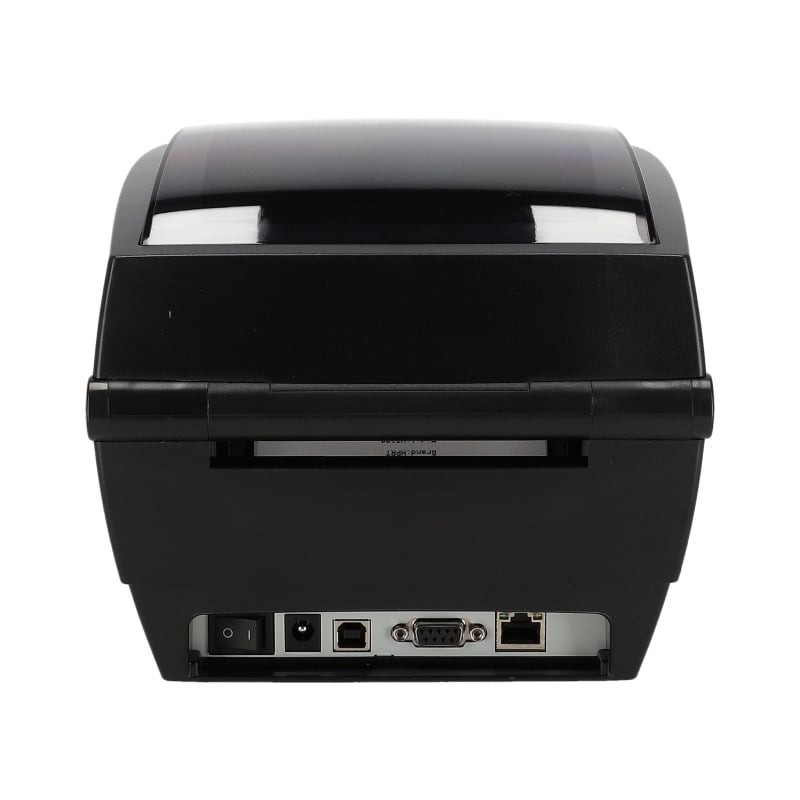

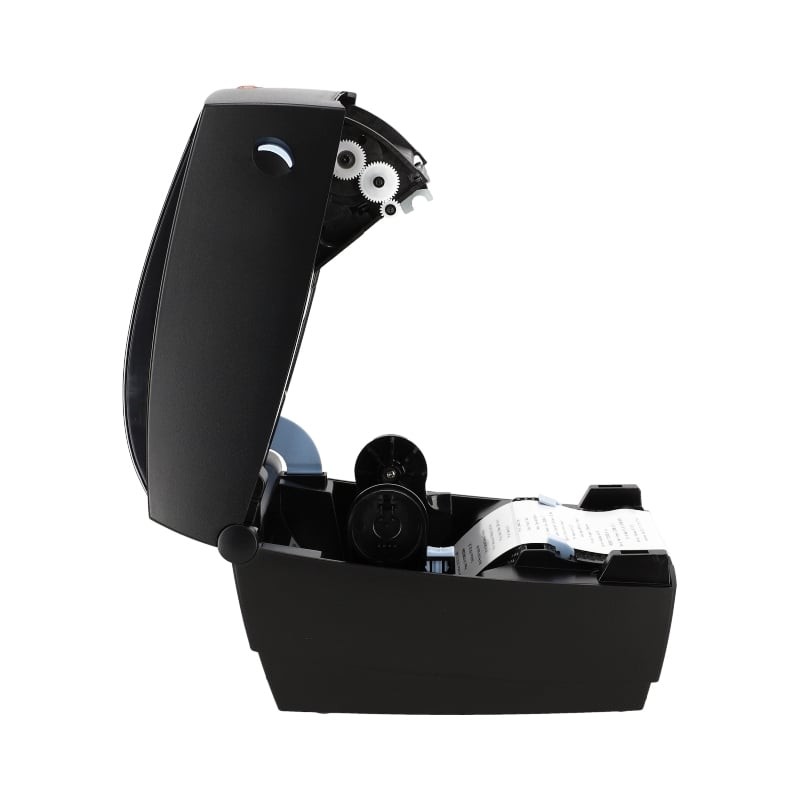

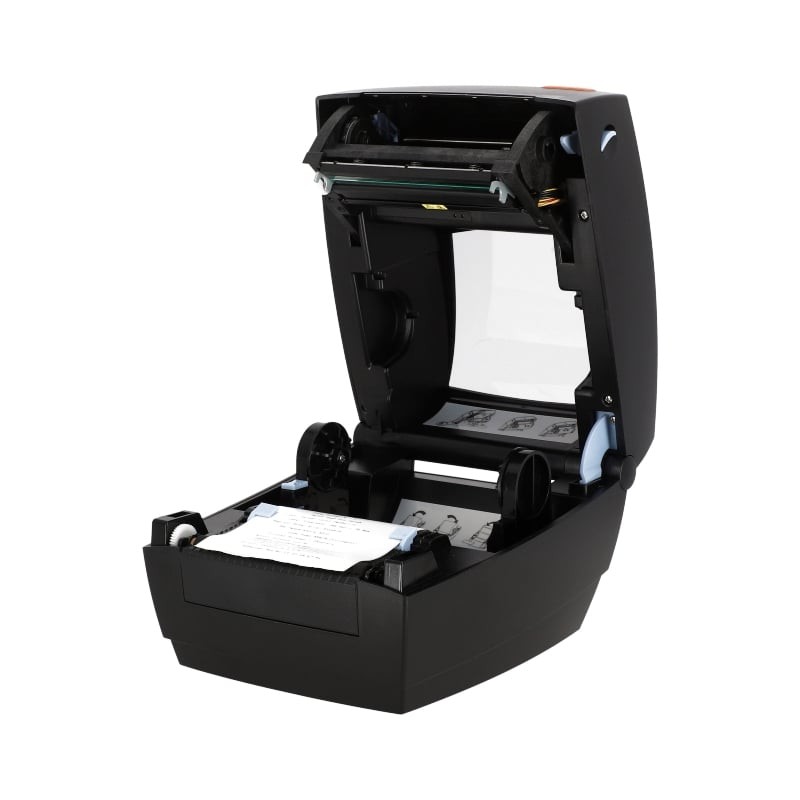

HPRT Printer Barcode HT100 - A0156346

Brand HPRT
Model HT100

Print Method
Direct Thermal & Thermal Transfer

Processor
32 bit RISC CPU

Memory
RAM 32 MB
Flash 16 MB

Resolution
203dpi (8dots/mm)

Print Speed
5IPS Max

Print Width
108mm Max

Print Length
15mm - 1200mm

Media
Types : Roll-fed or Fan-fed, Die-cut or Continuous label, Tag stock, Continuous receipt paper
Width : 0.79’’ (20mm) - 4.65’’ (118mm)
Thickness : 0.003’’ (80um) - 0.007’’ (180um)
Label Roll Diameter : 5’’ (127mm)
Core Diameter : 0.5’’ (25.4mm), 1’’ (25.4mm), 1.5’’ (38mm)

Ribbon
Types : Wax, Wax/Resin, Resin
Width : 1.33’’ (33.8mm) - 4.33’’ (110mm)
Length : 328’ (100m)
Core Diameter : 0.5’’ (25.4mm)

Interface
USB / RS 232C / Ethernet

Display Panel
Feed button with tri-color LED

Sensor
Adjustable reflective sensor
Fixed transmissive sensor (Central aligned)
Head-up sensor
Ribbon end sensor

Font
Programming Language : TSPL, ZPL Simulation

Resident Fonts
Bitmap Fonts : 8, 12, 16, 24, 32 and OCR A & B
90°, 180°, 270° rotatable. 10 times maximum expandable in horizontal and vertical directions
TTF Fonts : Monotype CG Triumvirate™ scalable true type font

Download Fonts
Bitmap Fonts : 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
TTF Fonts : 90°, 180°, 270° rotatable
Asian Fonts : 16x16, 24x24. Traditional Chinese,
Simplified Chinese, Japanese , Korean

Code Pages : 39

Barcode
1D : 20
2D : PDF417, Maxicode, DataMatrix, QR Code, Aztec

Graphics
N/A

System Support
Label Design : Label Design Driver
Driver : Windows 2000, XP, Vista7, 8, 10 By Seagull

Enviroment
Operation : 41°F(5°C)-104°F(40°C), 30%-85%, non-condensing
Storage : -4°F(-20°C)-122°F(50°C), 10%-90%, non condensing

Power Supply
Input : AC100-240V, 50/60Hz,
Output : DC 24V/2.5A, peak 7A

Special Features
N/A

Package Contents
N/A

Dimension (W x D x H) : 22.60 x 28.50 x 17.10 cm
Net Weight 2.26 KG
Package Dimension (W x D x H) : 32.00 x 24.00 x 22.00 cm
Gross Weight 2.81 KG
Volume 16,896.00 cm3
