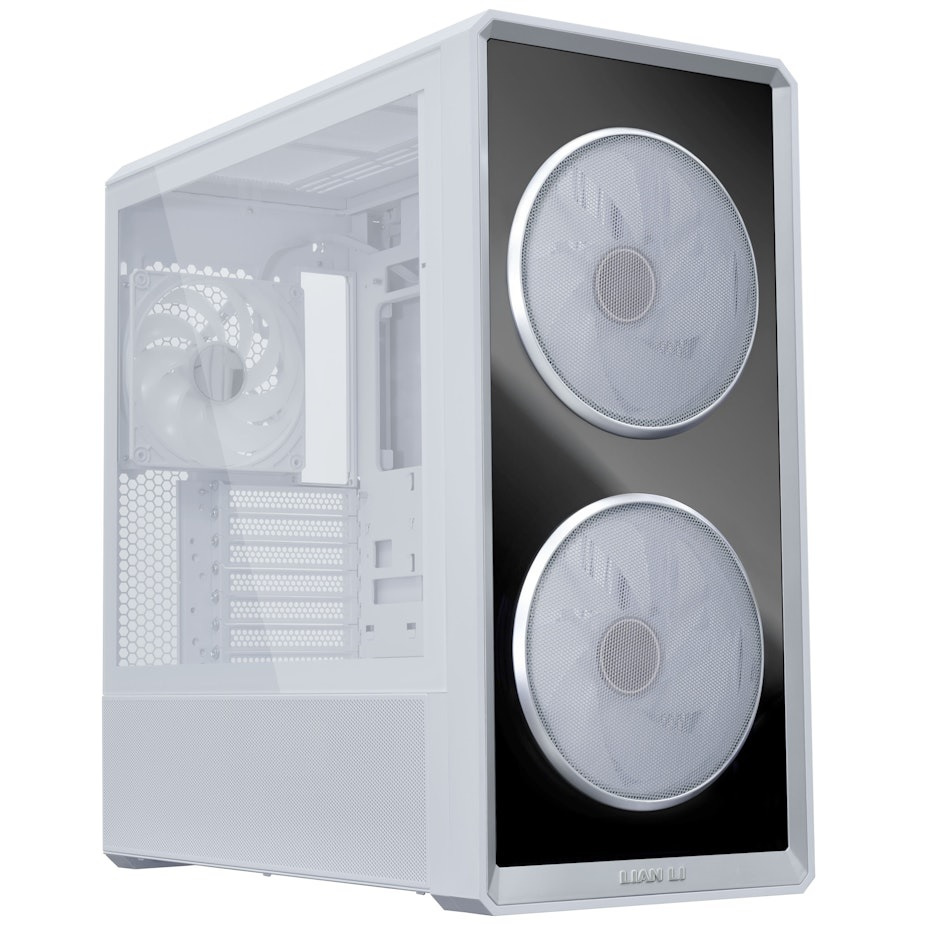

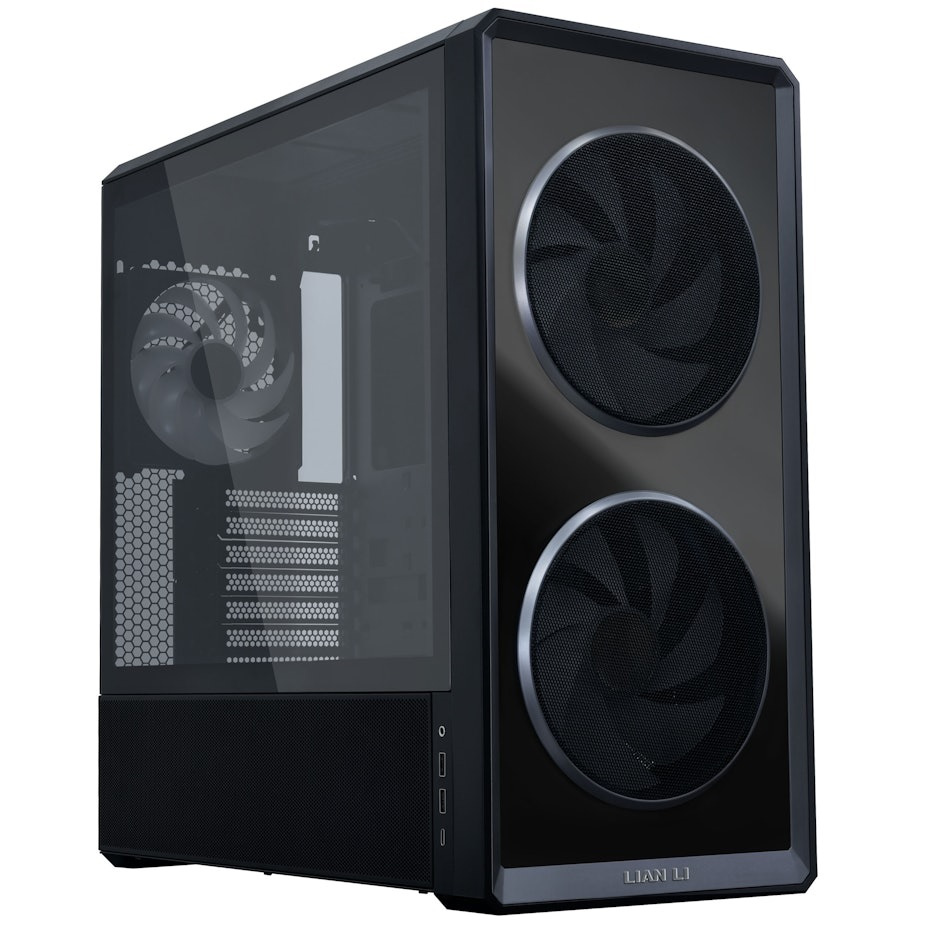

Lian Li LANCOOL 217 INF Mid-tower Case (Black/White)

Mid-tower chassis engineered for high-volume airflow with a bold infinity-mirror front aesthetic.
Dual 170 mm front fans + 140 mm rear fan deliver strong, efficient system cooling.
Tempered-glass front panel with precision cutouts and integrated infinity-mirror lighting.
Supports wireless fan and ARGB lighting control through L-Connect 3 (L-Wireless controller required), I/O buttons, or motherboard sync.

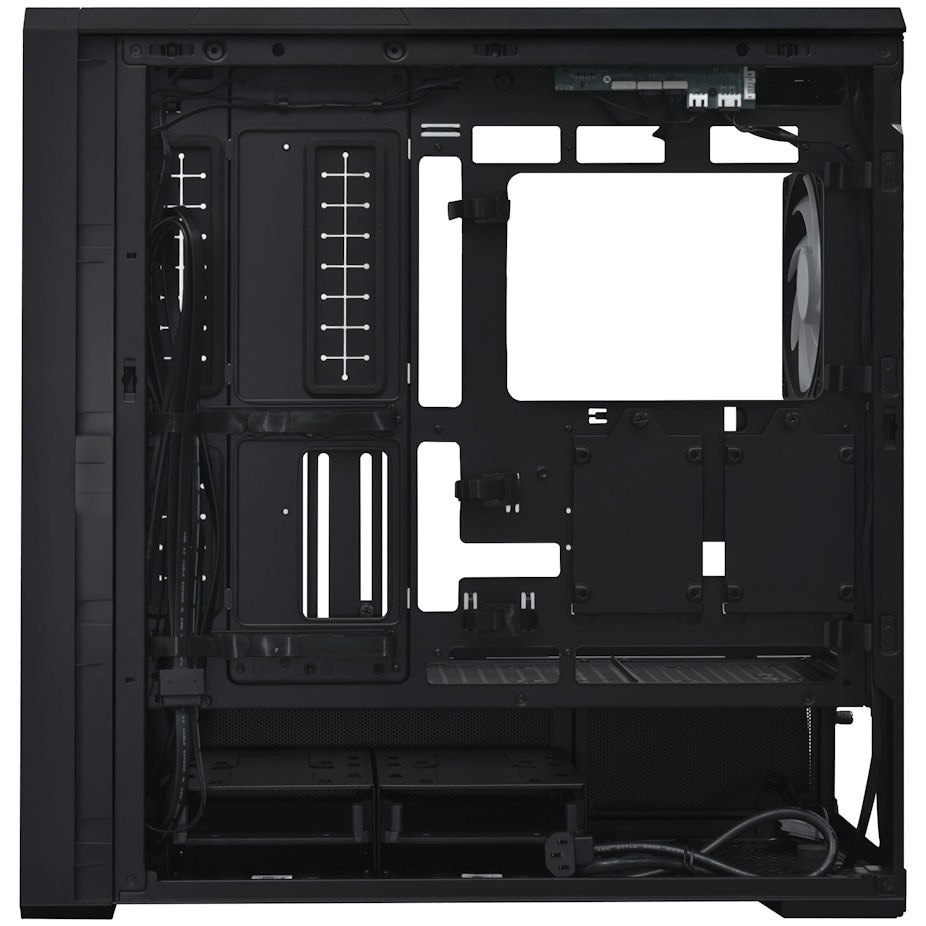

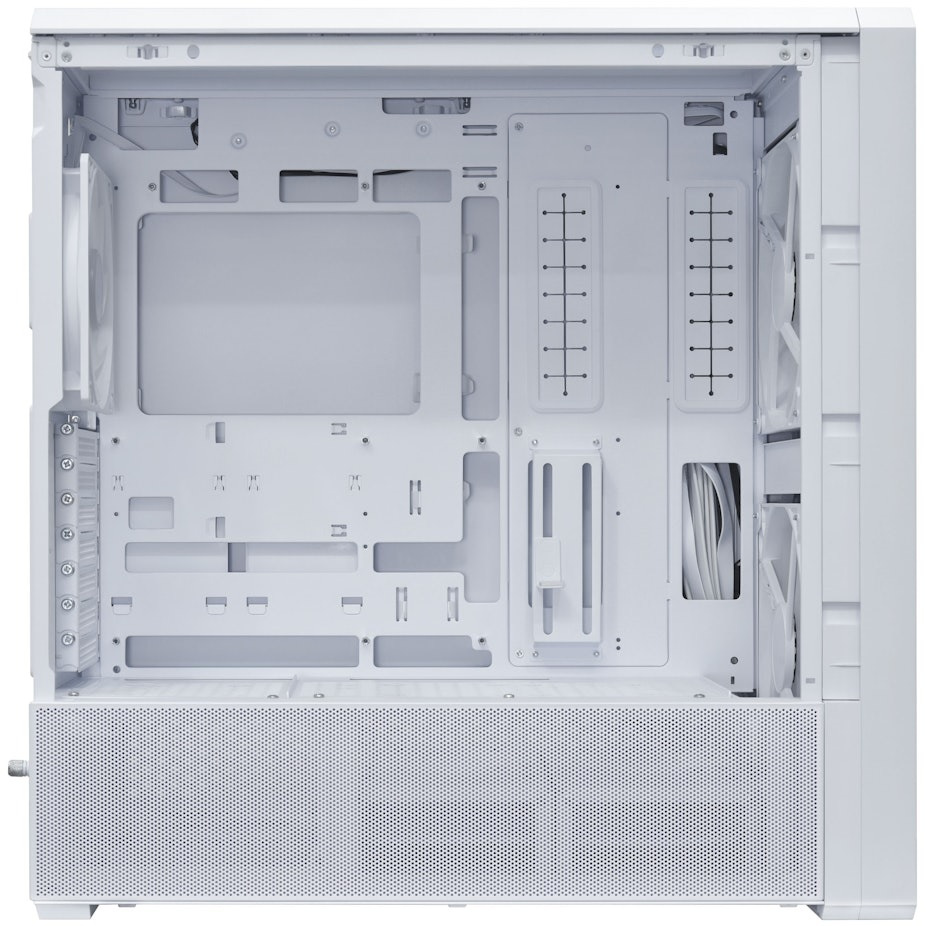

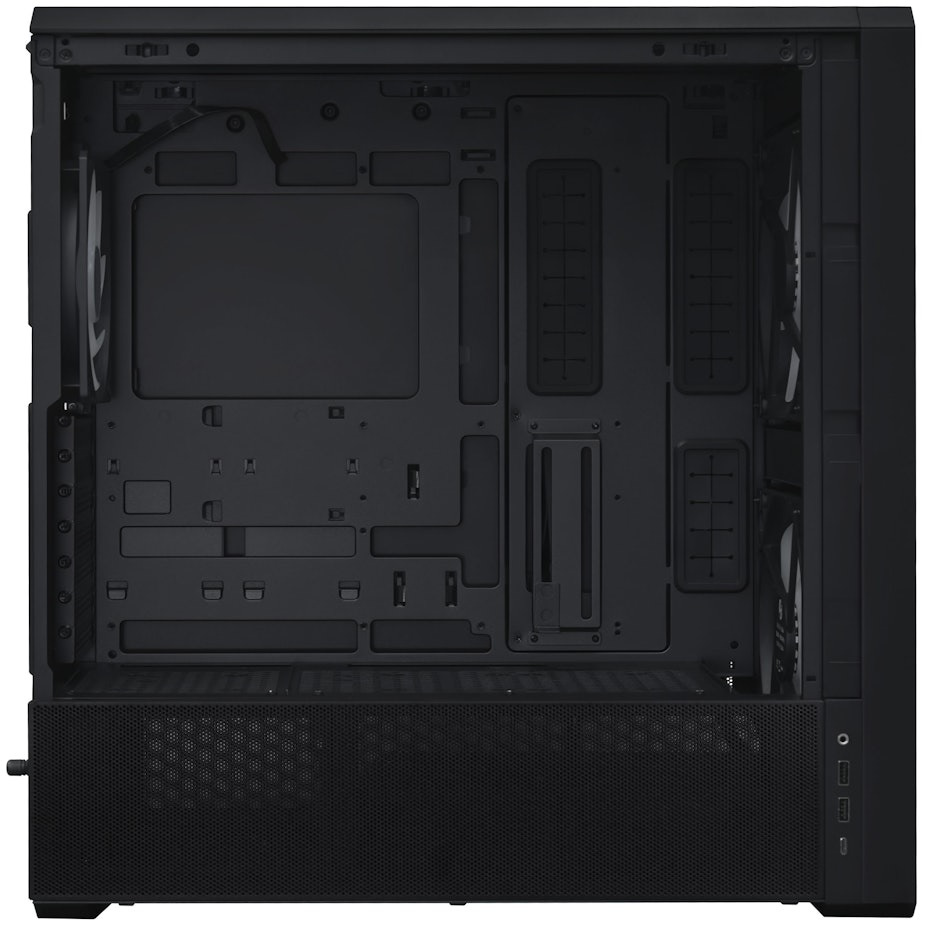

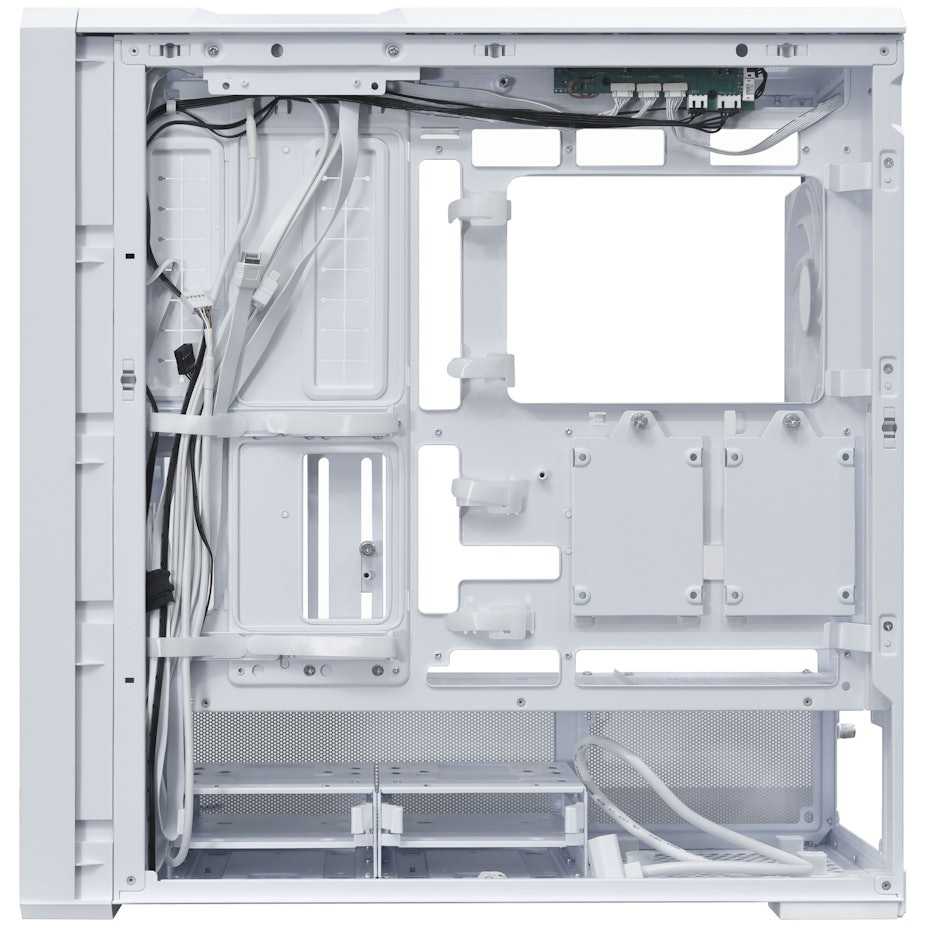

Compatible with back-connect motherboards for cleaner cable routing and a streamlined build.
Certified PPLP S-Class Thermal Performance for reliable cooling under demanding loads.

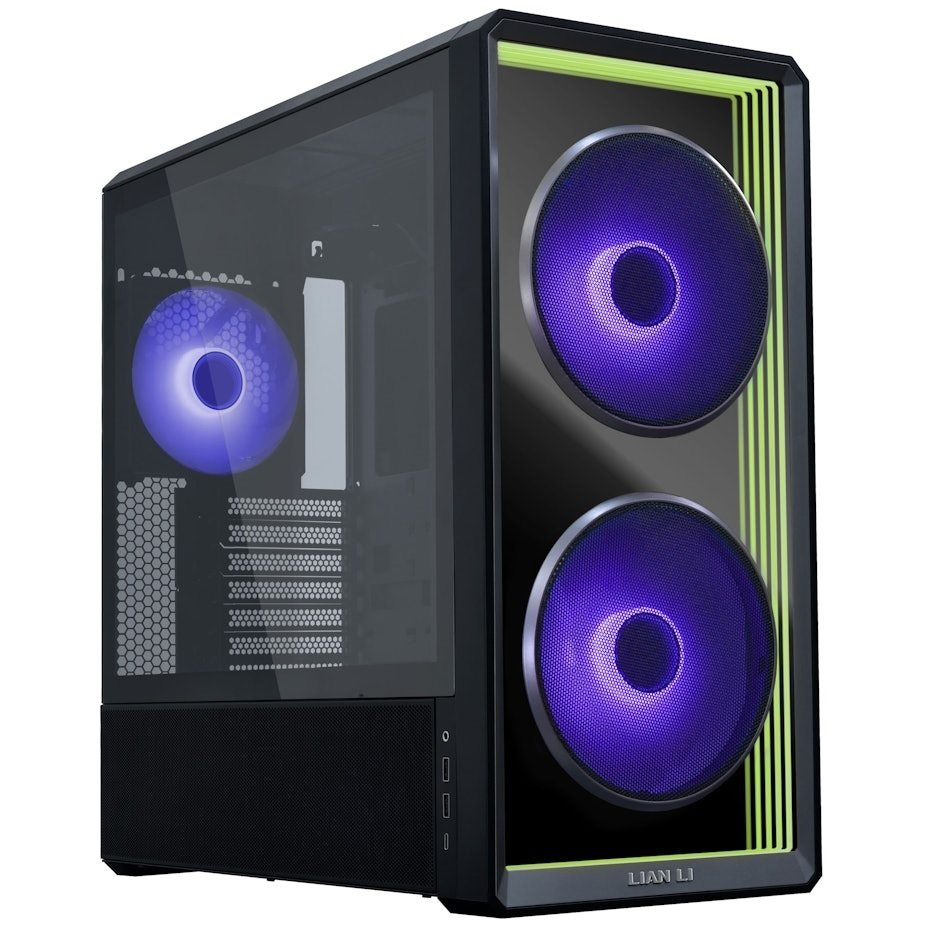

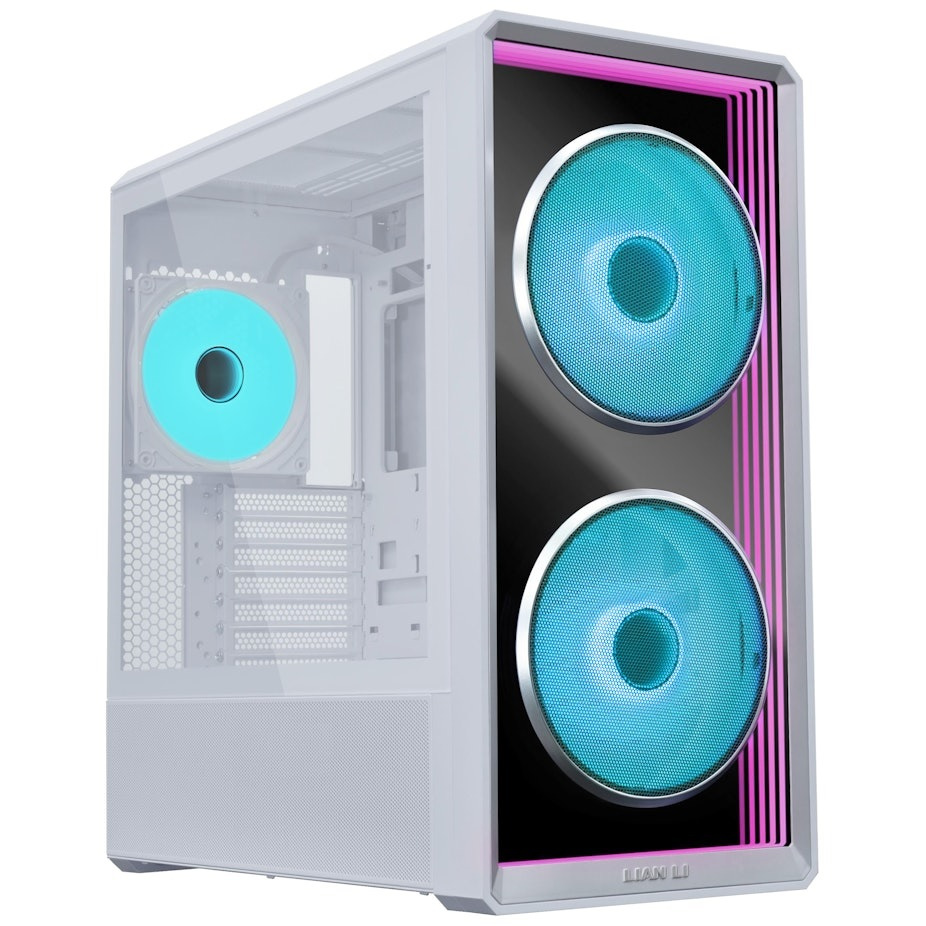

Infinity Mirror, Now Breathing

LANCOOL 217 INF continues our signature high-efficiency airflow design with an infinity mirror front panel for a striking visual effect, while dual tempered glass cutouts ensure ample airflow.

FLEXIBLE DESIGN, VERSATILE LAYOUTS

The PCIe slot bracket can be turned 90 degrees to support vertical GPU mounting. In this setup, the bottom fan can be moved under the PSU shroud for a hidden look, giving users more flexibility when building their system.

DRIVE SUPPORT

Behind motherboard tray: 2 x 2.5″ SSDs or 1 x 2.5″ SSD
(when using a rear-mounted Micro-ATX motherboard)
HDD cage: 2 x 3.5″ HDD + 2 x 2.5″ SSD+(2 x 3.5″ HDD or 2 x 2.5″ SSD)
PSU shroud cover: 1 x 2.5″ SSD

LARGE GPU, EXCEPTIONAL COMPATIBILITY

The LANCOOL 217 INF supports GPU up to 380mm in length and features an adjustable anti-sag bracket, ensuring a perfect and secure fit for GPU.

SPECIFICATIONS
PRODUCT NAME LANCOOL 217 INF
Model Name LAN217INFX LAN217INFW
TYPE Mid-Tower Case
COLOR BLACK WHITE
DIMENSIONS 482 mm (L) × 238 mm (W) × 503 mm (H)
MATERIALS Steel / 4.0 mm tempered glass

MOTHERBOARD SUPPORT SSI-EEB (max width 330 mm) / E-ATX (max width 280 mm)
ATX / Micro-ATX / Mini-ITX

BACK CONNECT MOTHERBOARD SUPPORT ATX / M-ATX

PSU LENGTH LIMIT Standard orientation: ATX up to 220 mm
Rotated orientation: ATX up to 180 mm

FAN SUPPORT Front: 2 × 170 mm (pre-installed)
Top: 3 × 120 mm or 2 × 140 mm
Bottom (above PSU shroud): 3 × 120 mm
Bottom (under PSU shroud): 2 × 120 mm
Rear: 1 × 140 mm (pre-installed) / 1 × 120 mm

RADIATOR SUPPORT Top: 360 / 280 / 240 mm
DRIVE BAYS Behind motherboard tray: up to 2 × 2.5″ SSD
(or 1 × 2.5″ SSD when using a back-connector mATX board)
Drive cages: 2; each supports 1 × 3.5″ HDD + 1 × 2.5″ SSD (or 1 × 3.5″ HDD / 2 × 2.5″ SSD)
PSU-shroud cover: 1 × 2.5″ SSD
GPU CLEARANCE 380 mm (length)
CPU COOLER HEIGHT 180 mm (max)
EXPANSION SLOTS 7
FRONT I/O 1 x Power button
2 × USB 3.0
1 × USB 3.2 Type-C
1 x Audio / Microphone Combo Jack
1 × M1 Front Panel Lighting Control Button
1 × M2 Fan Lighting Control Button
DUST FILTERS Bottom ×1 / Front ×1 (x2 RU version only)
INTEGRATED HUB ARGB / FAN HUB
(Sync Motherboard Fan Header x3 / ARGB Header x1)
WARRANTY 1 year (fans: 3 years)
